NF

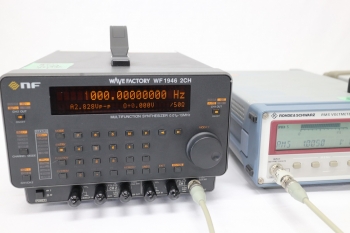

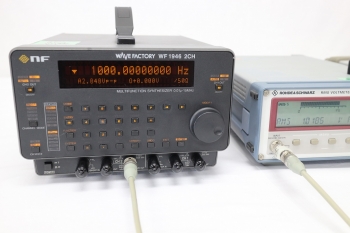

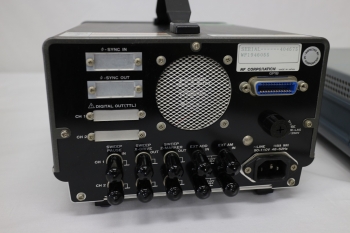

WF1946 2ch 15MHz Multi function Generator
販売済
- 仕様
-
0.01uHz-15MHz 2ch res0.01uHz acc5ppm Wave:Sin,Triangle,Squre,Pulse,Ramp,Noise,DC,ARB 16bit Duty:0.01-99.99% WaveMemory:3*32KW
Output:50ohms 0.0mV-10.000Vp-p(Open20Vp-p) res0.1mV Trr<20ns DCoffset+-10V res0.1mV SYCout +5V Burst:0.5-50K step0.5wave
Phase-1800-+1800 step0.001deg Trig:INT/EXT INT:1us-100s step1us Delay:0.3us-100s step0.1us Sweep:Start/stop Center/Span
LOG/LIN 1ms-10000s step1ms Single/Gate FM/PM(FSK,PSK) INT:0.1mHz-500.00Hz res0.1mHz Sin,Tri,Squre,Ramp Memory10 GP-IB USB1.1
Mode:Independent,2Phase,Ratio
100VA 4.6Kg 135H216W290D
定価44.1万円
