Agilent

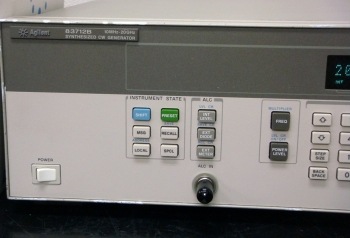

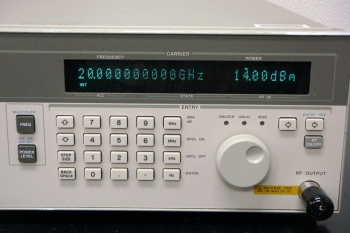

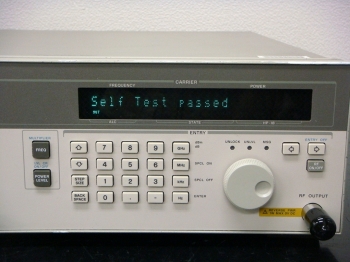

83712B 20GHz CWシンセサイザ

770,000円(税込)

仕様: Frequency Range:10MHz to 20GHz,
Resolution:1Hz (opt1E8),

Maximum Output:+13dBm(0.01 to 1GHz),+10dBm(1GHz to 18GHz),+8dBm(18 to 20GHz), (opt1E1),
Accuracy:+-2.3dB(10-50MHz),+-2.0dB(50MHz-20GHz),+-2.5dB(10MHz-20GHz),

Modulations;
Pulse Modulation;
Maximum pulse repetition frequency: >3 MHz
Minimum pulse duty cycle: no restrictions on duty cycle
Pulse level accuracy: ±1.0 dB (relative to CW)
Pulse overshoot: <10 %
Input impedance: 50Ω nominal; TTL drive levels
Maximum leveled output power in pulse mode: –0.5 dB
Frequency Modulation
Rates: 1 kHz to 1 MHz
Flatness: ±2 dB

Noise figure meter compatibility
Agilent 8370 sources are fully compatible with and
can be controlled by the 8970B noise figure meter
through Special Function 41.5.

Power requirements
Power: 90 to 132V, 48 to 440 Hz; 198 to 264V,
48 to 66 Hz; 260 VA maximum

Physical dimensions
Net weight: <16 kg (35 lb) Shipping: <23 kg (49 lb)
Size: 498 mm D x 426 mm W x 133 mm H

Option
1E1: 100 dB Output Step Attenuator
1E8: 1 Hz Frequency Resolution
