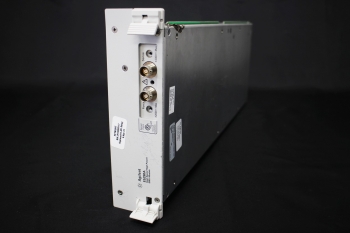

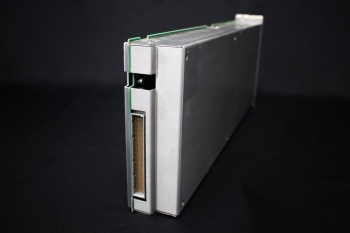

Agilent E5290A High Speed High Power SMU 200V 1A
JPY400,000 1stock
lcr265



Voltage range
±002 V res 100 µV
±020 V res 1 mV
±040 V res 2 mV
±100 V res 5 mV
±200 V res 10 mV

Current range
±100 nA res 5 pA
±1 μA res 50 pA
±10 µA res 500 pA
±100 µA res 5 nA
±1 mA res 50 nA
±10 mA res 500 nA
±100 mA res 5 µA
±1 A res 50 µA

Output terminal/connection: Triaxial connector,
Kelvin (remote sensing)
