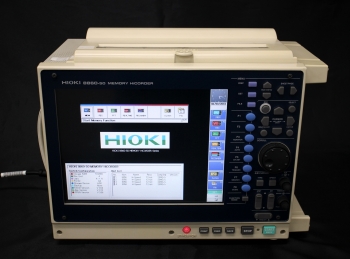

HIOKI 8860-50 + 8956*4 Analog 8ch Memory Hi-Coder
SOLD OUT sold |
rec401 |
|
|
|
|
|
|
8860-50:max. 4 input modules
Analog8ch
Logic16ch(Need Probe)
Input:5mV - 20V/DIV
Memory:128MWord/ch(using 1ch),16MWord/ch(using 8ch),
Sampling:20MS/s
Standard external interfaces:
USB: USB2.0 compliant, series A receptacle 3 ports USB printer is N/A
LAN: RJ-45 connector, Ethernet 100BASE-TX, 10BASE-T
Functions: HTTP server, FTP server, File sharing, DHCP
Monitor output: 15-pin D-sub connector, SVGA output
GP-IB *4
Power requirements:100 to 240 V AC (50/60 Hz)
Dimensions and mass:Approx. 330 mmW×272mmH×84.5mm
Opt
8956*4:Analog Unit*4
9715-52:Direct access internal memory 512M
9718-50:HDD
Maker Price:JPY1,300,000 |

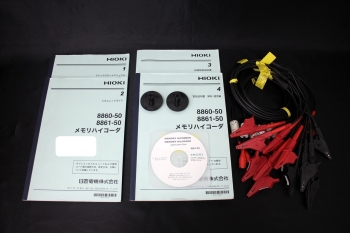

| J-manual,BNC-Aligator cable*8,Paper holder,CDROM |
 |
|
)
)
)
)
)
)
