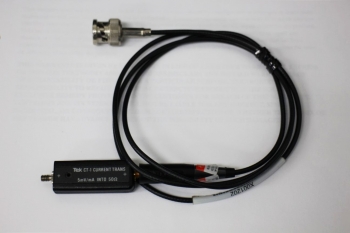

Tektronix CT-1 25kHz-1GHz High-frequencyCurrentProbe
SOLD OUT sold |
osc714 |
|
|
|
Bandwidth(typical) 25kHzto1GHz
RiseTime 350 ps
Sensitivity (into50Ω) 5 mV/mA
Accuracy ±3%
Magnetizing Inductance 6 μH
Leakage Inductance 2.4 nH
Max. BareWireVoltage
RMS 175VRMS CATI
Peak 1000 V
Max PeakPulse Current 12 A
Max. Continuous Current(RMS) 450 mA
|

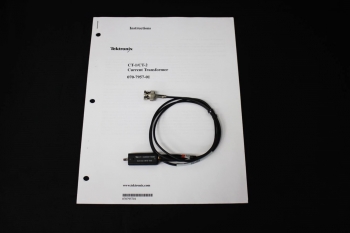

| Manual |
 |
|
)
)
)
