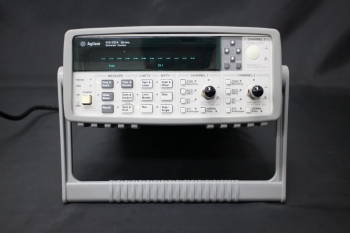

Agilent 53132A 225MHz 2ch 12digits Universal counter
SOLD OUT sold
fre125





0.1Hz-225MHz 2ch res12Digits/s Stability <3×10-7/month
Sense DC-100MHz >20mV 100-200MHz >30mV 200-225MHz >40mV
Input 50/1Mohms AC/DC Filter100KHz ATT10:1
TimeInterval500ps
Frequency Ratio TimeInterval
RiseTime FallTime Phase DutyCycle +,-PulseWidth Accumulate PeakVolt
TimeIntAverage TimeIntDelay Limit Test
Statistic Mean Max Min Deviation N 2-100K
Memory 20
GP-IB RS232C
AC100-240V 50/60Hz 170VA 3.5Kg
88.5mm×212.6mm×348.3mm
Power Code
